Feature
- The specially designed spindle outer ring cooling system maintains constant bearing accuracy under normal operating conditions.
- This gear type auto-shift design and grease lubrication system also provides superior machine performance and reliability.
- The spindle and boring bar are made of SACM645 alloy. The spindle has been Nitrided to HRC62~68. This hardness maintains spindle form and insures high reliability. This increased rigidity increases the overall machine capability.
- We use the high quality spindle bearings to ensure machine consistency and a longer machine life.

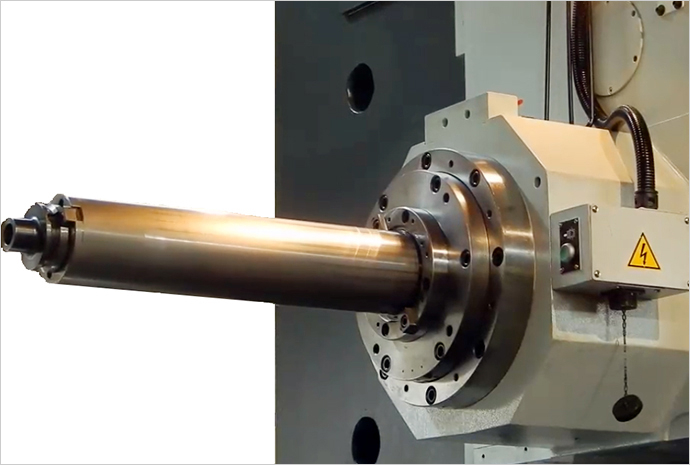

Spindle 135P (without Quill)

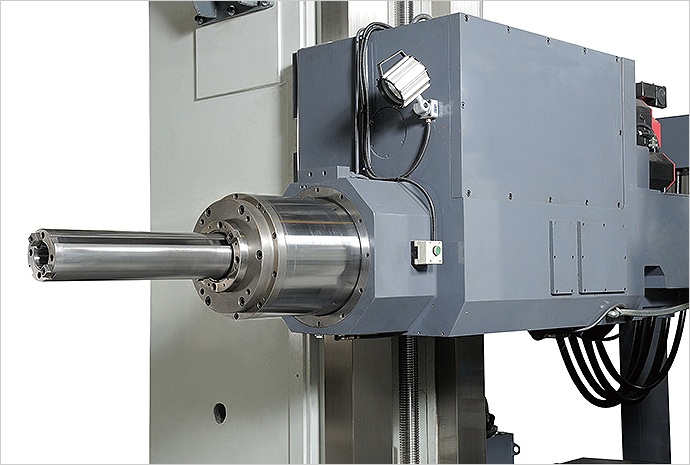

Spindle 135Q (with Quill)
Box Ways

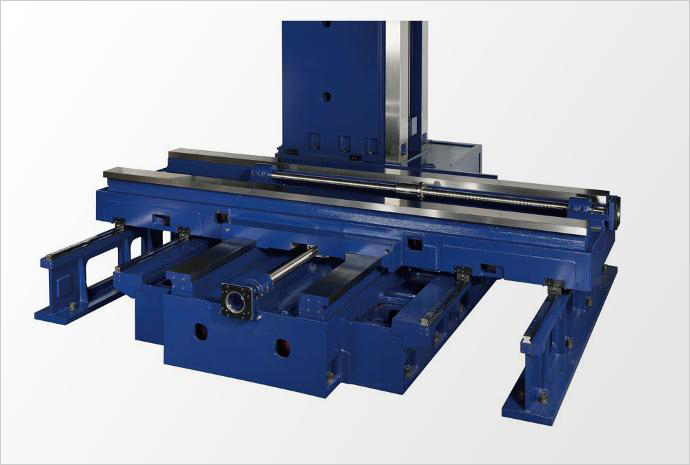

These highly rigid box way structures give you the very best machine durability. The material is high-frequency-heat-treat for stress relief.
The 4-in-1 design for base body slideways enhance the cutting capabilities in the Z-axis.

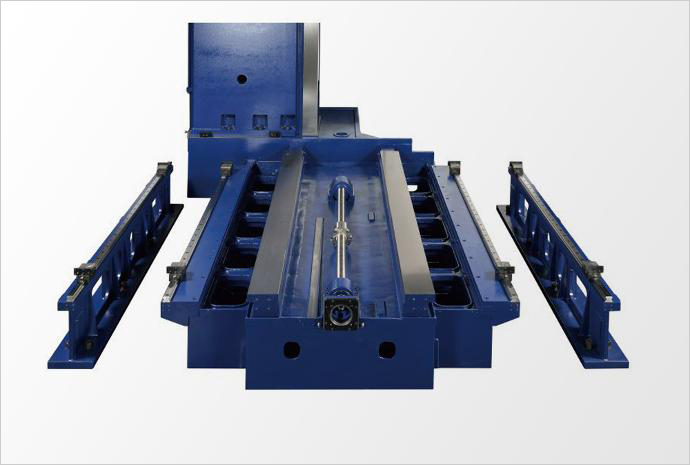

High Precision Slide Ways
Our auto grease lubricating system provides several advantages for the overall machine capability.
It not only maintains high accuracy during the long working hours, but also functions perfectly with low speed machining. The high precision ball screw axis transmission provides superior machine stability resulting in highly accurate work pieces.
R2 & R3 provides 2 additional linear slide ways to enhance durability and eliminate unwanted deflection. This significantly improves machine cutting accuracy

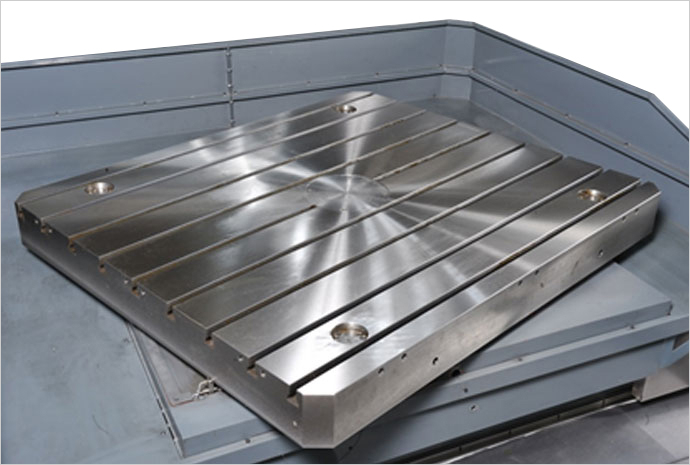

Rotary working table
The bed slideway is box way, adopted roller bearing and worm-gear equipped force lubricated system. Table center equipped Heidenhain rotary encoder assure index accuracy. Table equipped Hydraulic clamping system & positioning pin, assure indexing angle 0°, 90°, 180°, 270° heavy cutting accuracy.

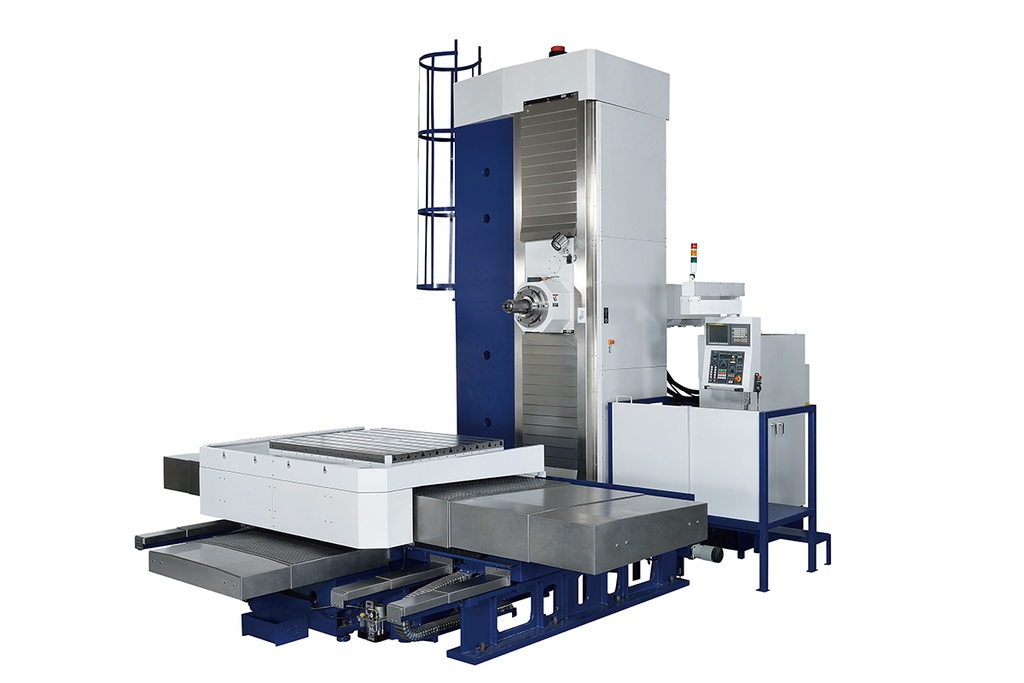

CBA-135R2 / CBA-135R3
| Specification | Unit | CBA-135R2 | CBA-135R3 |
| Spindle |
|||
| Main Motor ( cont. / 30min ) | kw | 37 / 45 | 37 / 45 |
| Spindle Speed ( Max. ) | rpm | 2000 | 2000 |
| Spindle Taper | ISO 50 / BT-50 | ISO 50 / BT-50 | |
| Spindle Diameter | mm | Ø135 | Ø135 |
| Max.
Spindle Torque ( S1 ) | Nm | 2150 | 2150 |
| Travel | |||
| Work Table Travel X axis ( Horizontal ) | mm | 2000 | 3000 |
| Spindle Travel Y axis ( Vertical ) | mm | 2000 | 2000 |
| Work Table Travel Z axis ( Longitudinal ) | mm | 1300 | 1500 |
| Spindle travel W axis | mm | 700 | 700 |
| Distance from spindle nose to table center | mm | 775 ~ 2075 | 775 ~ 2275 |
| Distance from spindle center to table surface | mm | 0 ~ 2000 | 0 ~ 2000 |
| Rotary Table | |||
| Table Dimension | mm | 1400 x 1600 | 1600 x 1800 |
| T-Slot | mm x No. | 22 x 9 | 22 x 9 |
| Max. loading weight | kg | 8,500 | 10,000 |
| Index | degree | 0.001° | 0.001°
|
| Max. Rotation
Diameter | mm | 2126 | 2408 |
| Table Rotation Speed | rpm | 0.8 | 0.8 |
| Feed | |||
| Rapid Feed (XYZW axis) | mm / min | XYZ axis = 10000 W axis = 3000 | XYZ axis = 10000 W axis = 3000 |
| Feed Rate ( X / Y / Z axis ) ( W axis ) | mm / min | 1 - 5000 1 - 3000 | 1 - 5000 1 - 3000 |
| Machine Dimension （L×W×H） | mm | 5500 × 9300 × 5300 | 6300 × 9600 × 5300 |
| Machine weight | kg | 38000 | 40500 |
| Controller | Fanuc / Siemens / Heidenhain | Fanuc / Siemens / Heidenhain |
| Standard Accessories |
Optional Accessories |
| Tool and tool box | ATC ( Automatic Tool Changer ) |
| Foundation Screws and Bolts | Coolant through spindle |
| Spindle oil cooler | Linear scale |
| Spindle Box vertical movement counter weight | Spindle support |
| Work Lamp | Facing head |
| Electrical Cabinet Cooler | Transformer |
| X axis dust cover | Splash guard for rotary table |
| Y axis dust cover | Splash guard for operator |
| Z axis dust cover | Work Piece Measuring Device |
| MPG ( Manual Pause Generator ) | Spindle Quill Travel ( W2 axis ) 350mm |
| Automatic Lubrication system | |
| Screw chip conveyor | |
| Steel Belt Chip Conveyor ( with cart ) |
